Description

Product Teaser

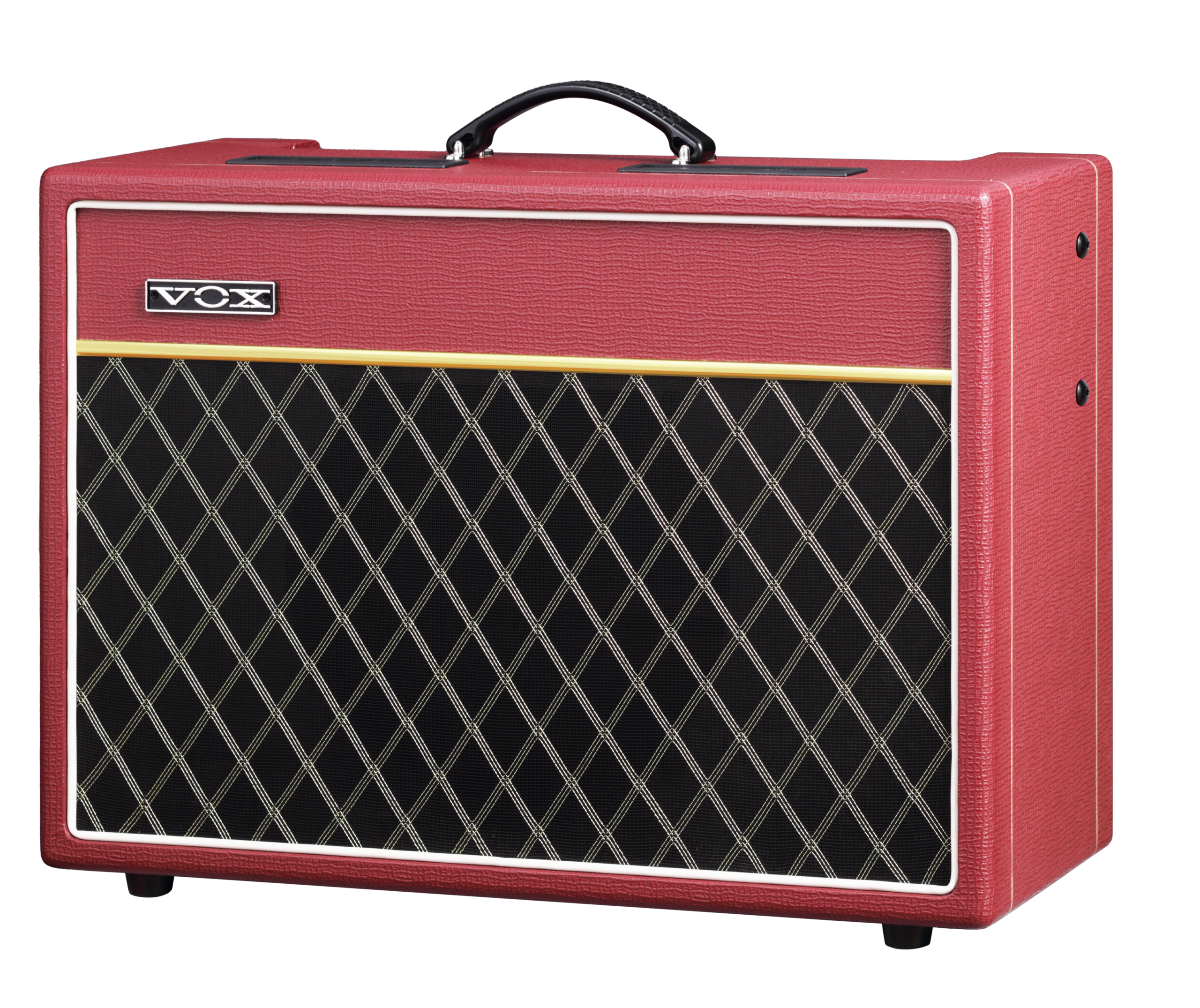

The AC Custom series offers the iconic VOX sound in modern combo guitar amplifiers. The AC10, AC15, and AC30 models are now available in the limited Classic Vintage Red cosmetics, with vintage red tolex, black & gold fret cloth, and vintage logo. This standout look is the perfect addition to any guitarist’s VOX collection.

output power

15 Watts RMS

speaker

12″ Celestion G12M Green Back 16 Ohm

Inputs

1 x Normal Input Jack
1 x Top Boost Input Jack
1 x Foot Switch Jack

outputs

1 x External Speaker Jack
1 x Extension Speaker Jack

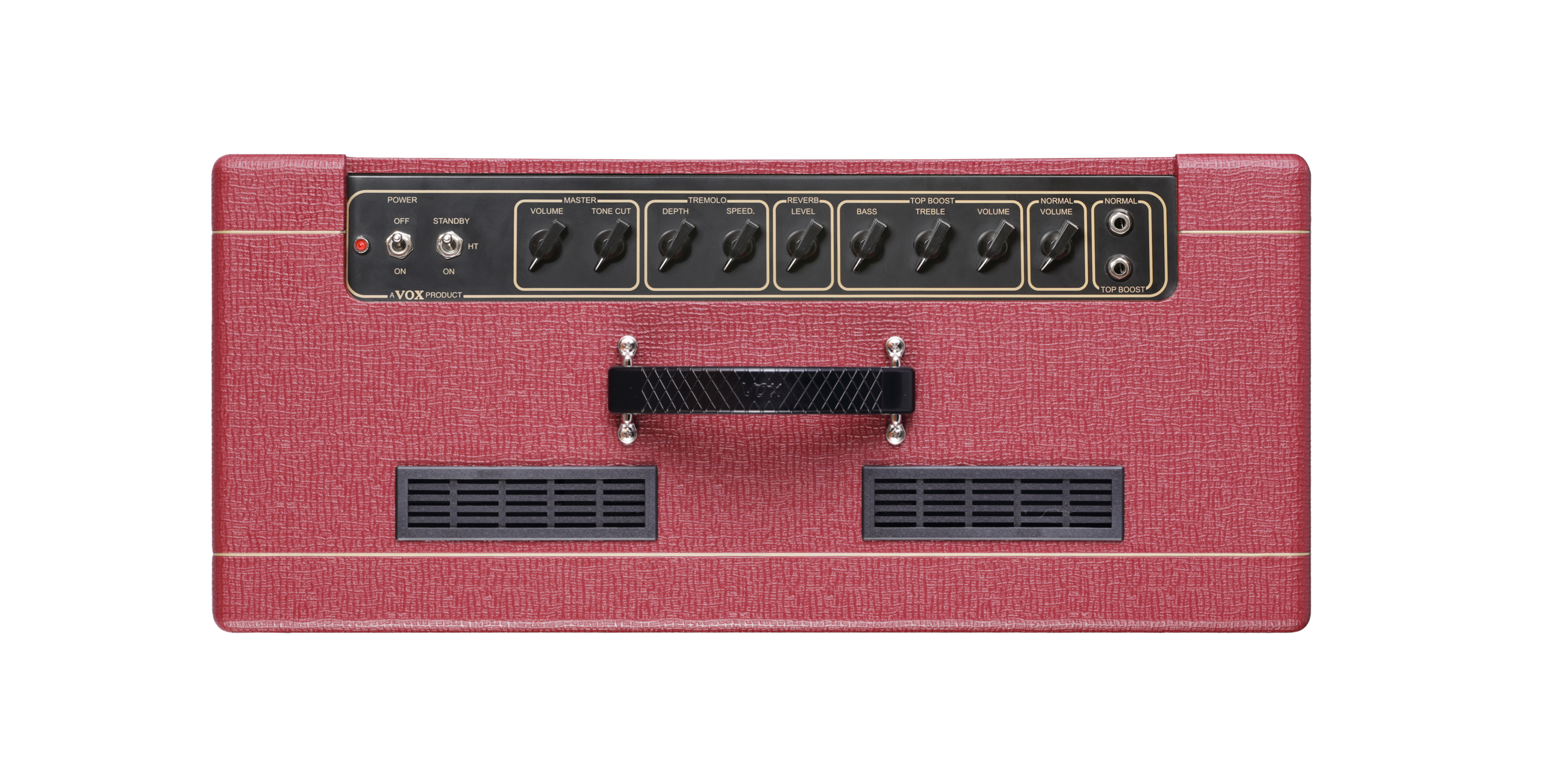

Controls

NORMAL channel volume, TOP BOOST channel volume, TOP BOOST treble, TOP BOOST bass, reverb, tremolo speed, tremolo depth

MASTER: Tone cut, master volume

Tube compliment

3 x Preamp ECC83 / 12AX7
2 x Power Amplifier EL84

dimensions (w x d x h)

602 x 265 x 456 mm | 23.70 x 10.43 x 17.95 inches
22 kg | 48.5 lbs

accessories

Power cable, VFS2A foot switch
