Description

This pedal provides a huge, responsive range of gritty and textured tones that enhance the sound of your rig while preserving its fundamental character—and in an MXR mini housing, this pedal will free up some serious pedalboard space.

This pedal is powered by the Dunlop ECB003 9-volt adapter or an MXR Brick Series power supply. This pedal cannot be powered by a battery.

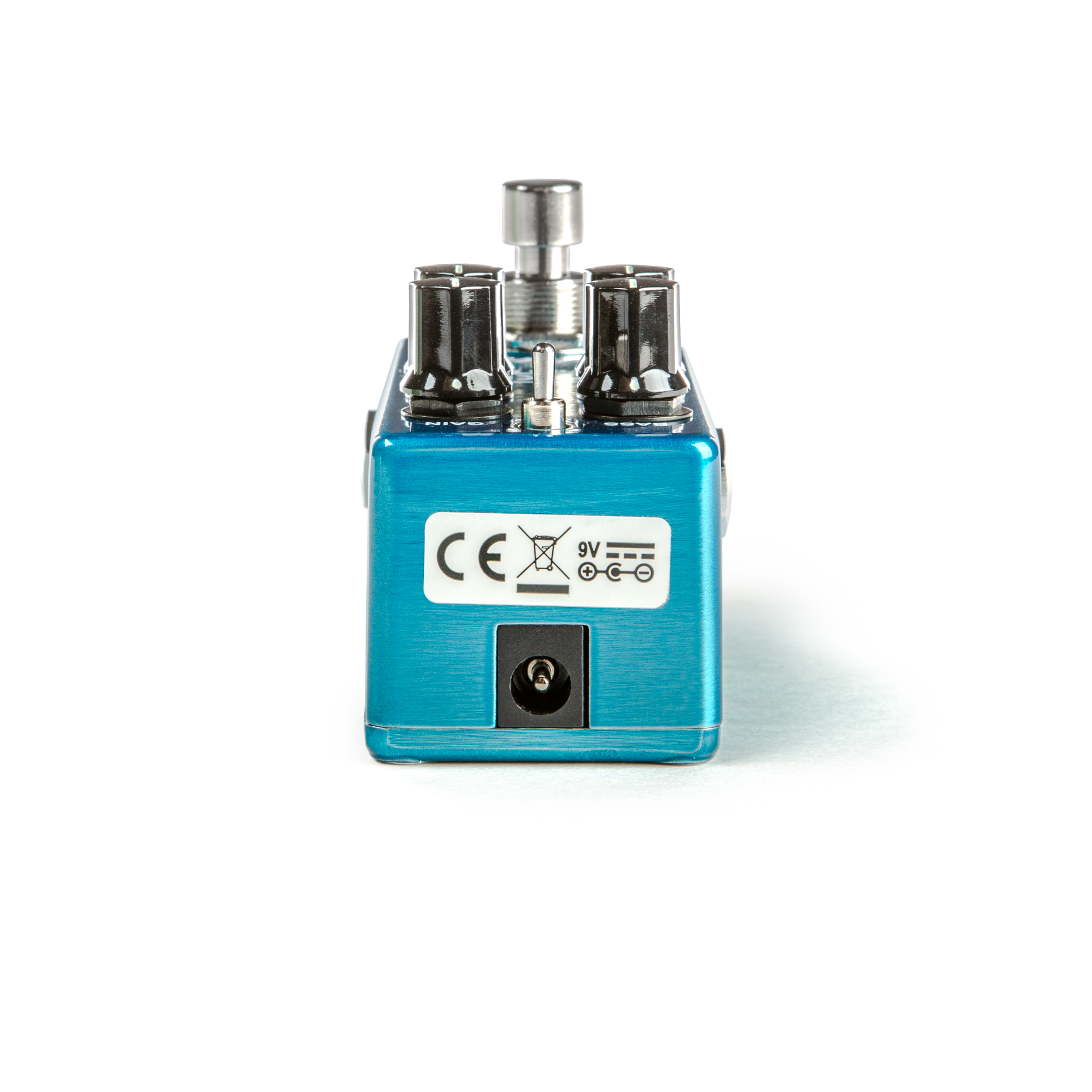

Power

The Timmy® Overdrive is powered by the Dunlop

ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™,

and Mini Iso-Brick™ power supplies. This pedal

cannot be powered by a battery.

Directions

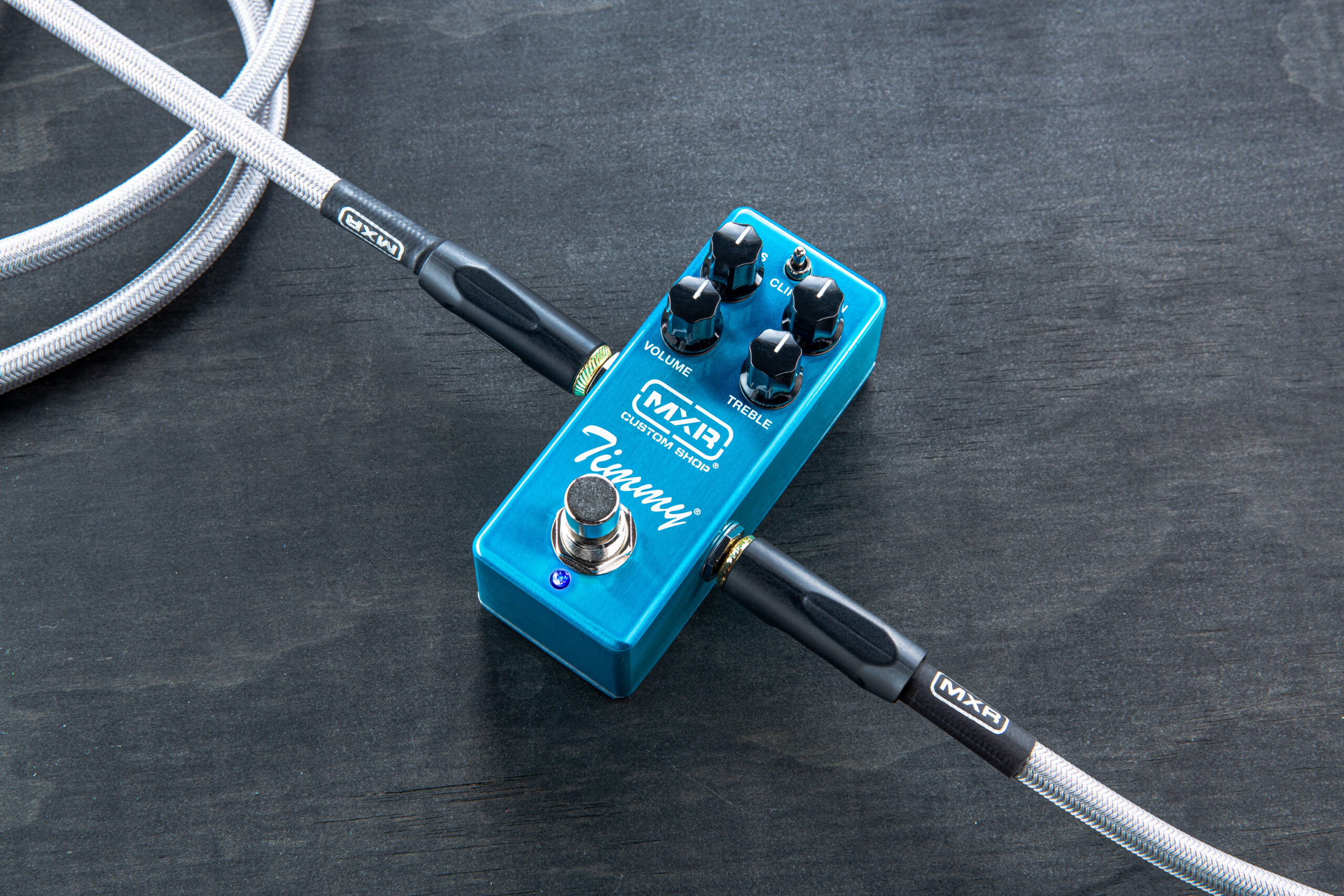

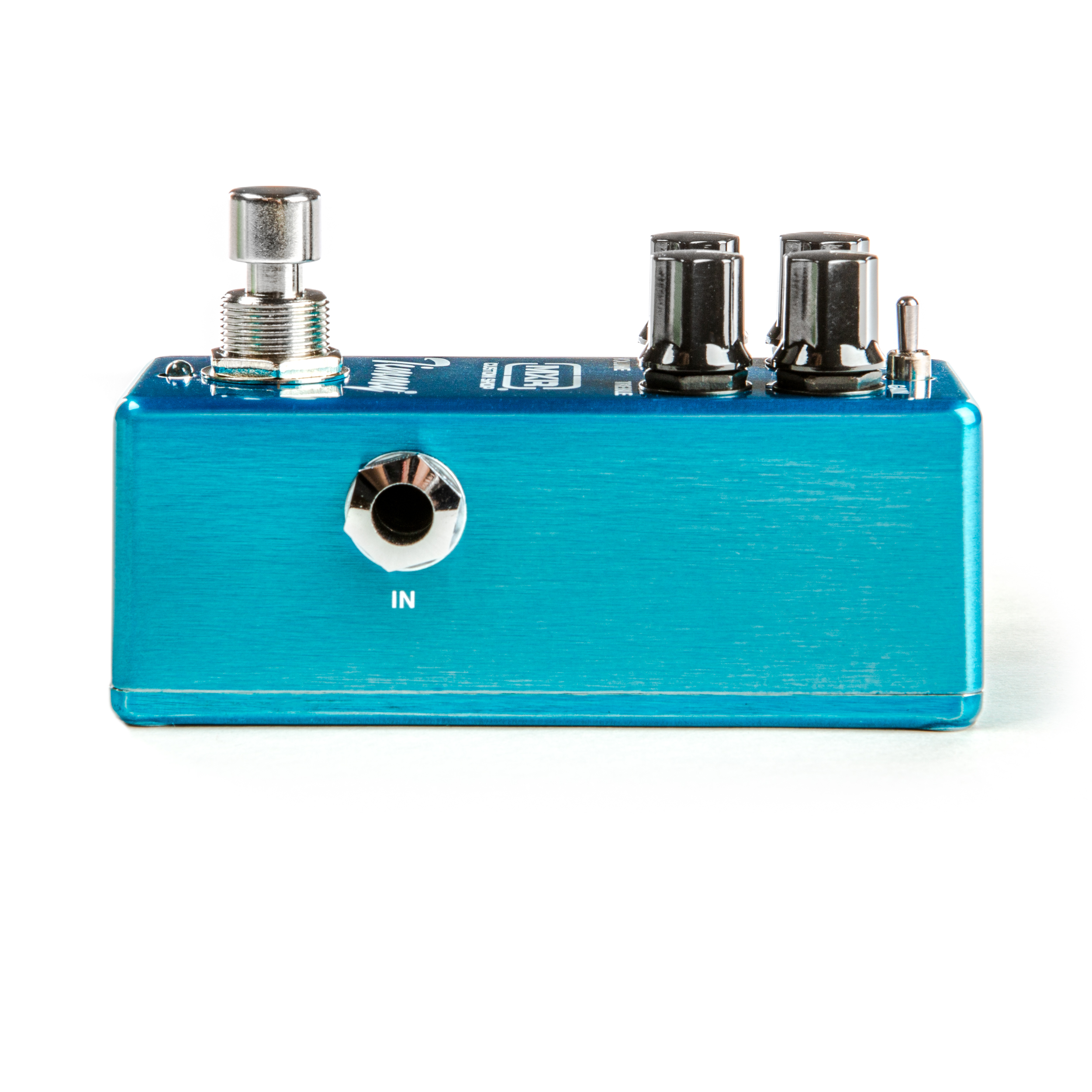

1. Run a cable from your guitar to CSP027’s INPUT jack

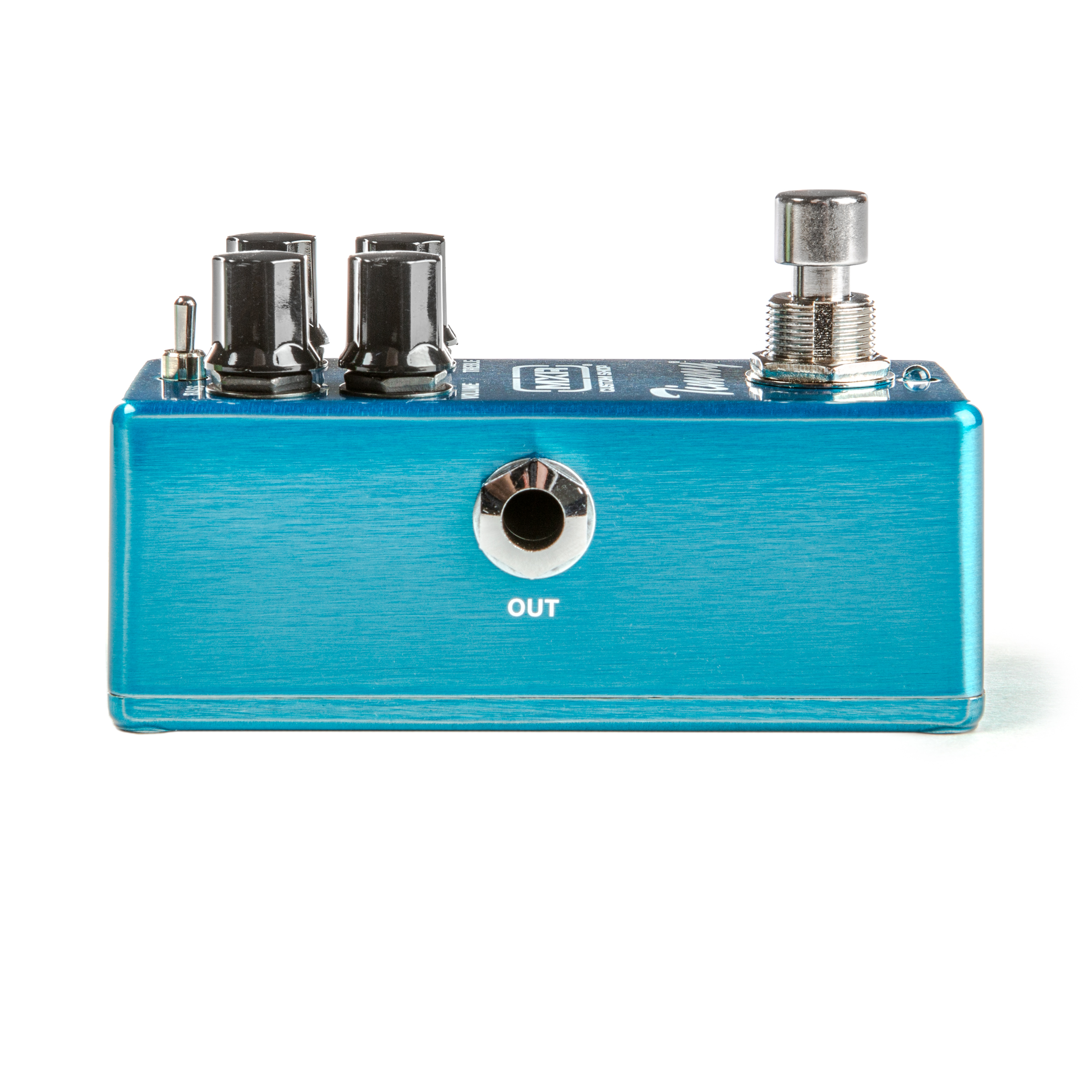

and another cable from CSP027’s OUTPUT jack to your

amplifier.

2. Start with VOLUME and GAIN controls at 12 o’clock

and BASS and TREBLE controls fully clockwise.

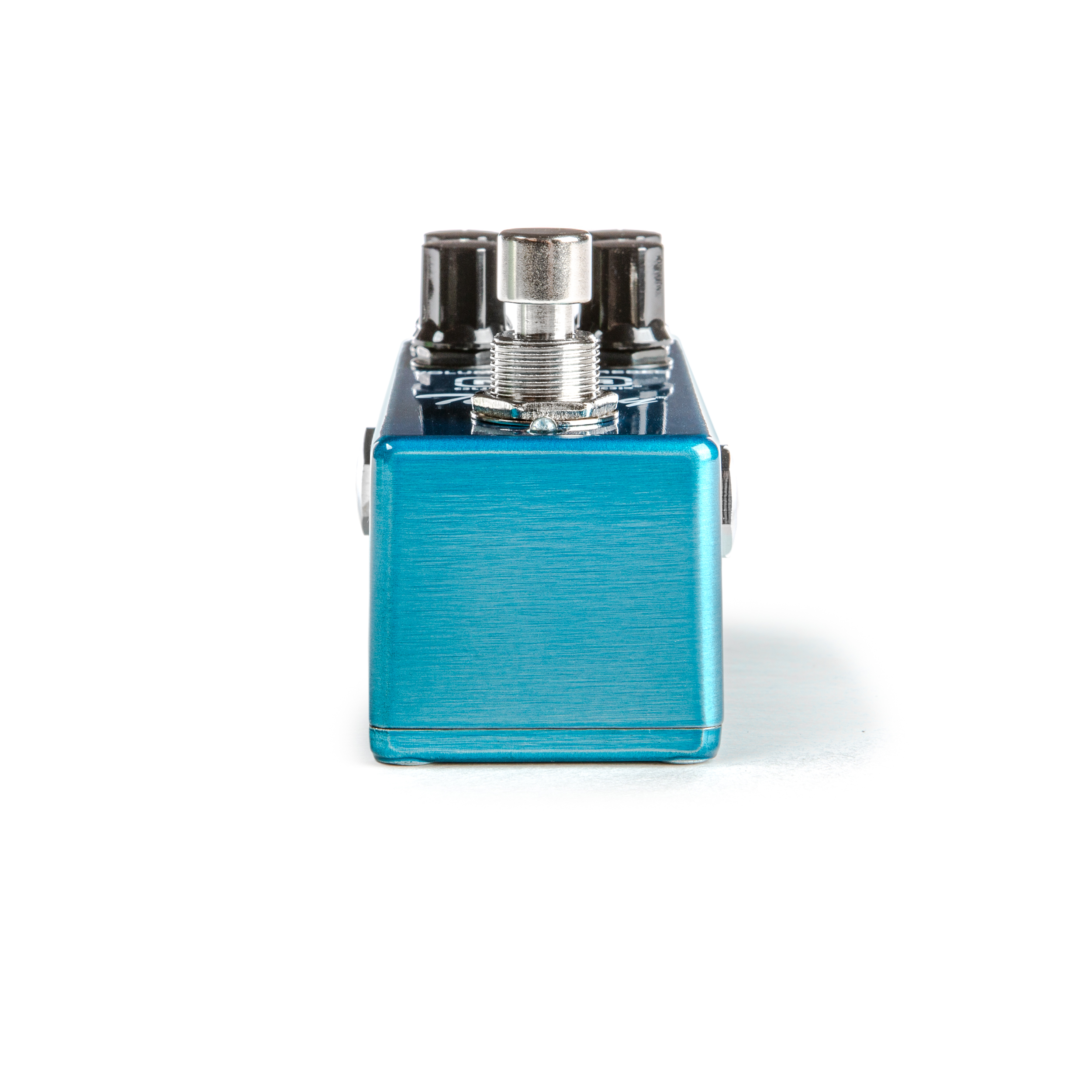

3. Turn effect on by depressing the footswitch.

4. Use CLIP switch to select your preferred clipping style:

The Left position provides asymmetrical clipping with

moderate saturation and slight compression for a wide,

dynamic range of sounds.

The Middle position provides symmetrical clipping with

light saturation, high headroom, and high definition for

a big sound.

The Right position provides symmetrical clipping with

heavy saturation and low headroom.

5. Rotate VOLUME knob clockwise to increase overall

volume or counterclockwise to decrease it.

6. Rotate GAIN knob clockwise to increase overdrive

intensity or counterclockwise to decrease it.

7. Rotate BASS knob counterclockwise to reduce bass

frequencies to your taste.

8. Rotate TREBLE knob counterclockwise to reduce high

frequencies to your taste

Specifications

Input Impedance

400 kΩ

Output Impedance*

1 kΩ

Noise Floor*-115 dBV

Gain

3 dBV to 43 dBV

Bypass

True Hardwire

Current Draw

2.2 mA

Power Supply

9 volts DC
