Description

The Script Phase 90 combines vintage phasing with an LED and AC power jack for modern convenience.

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick^™, Iso-Brick^™, and Mini Iso-Brick^™ power supplies (not included).

DIRECTIONS

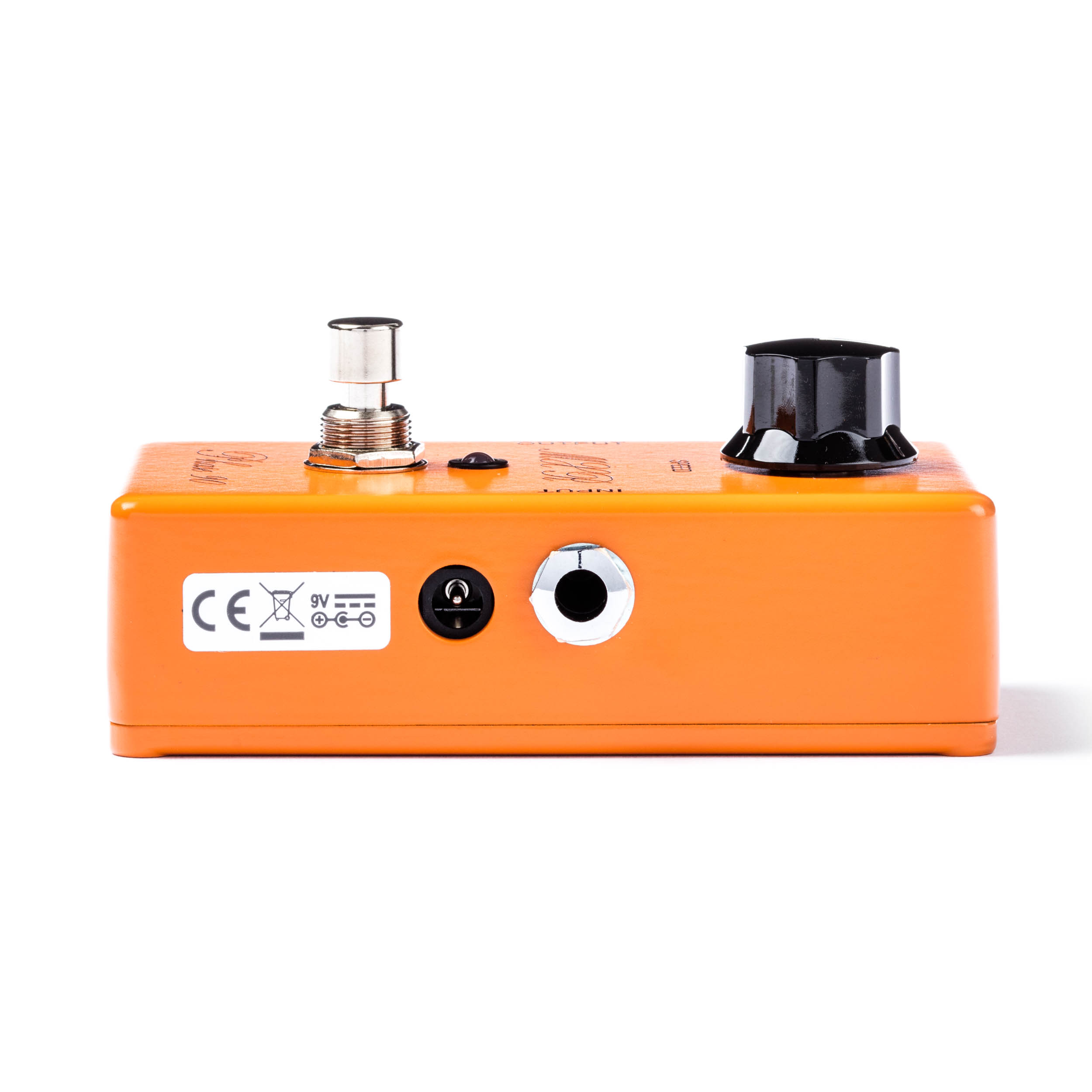

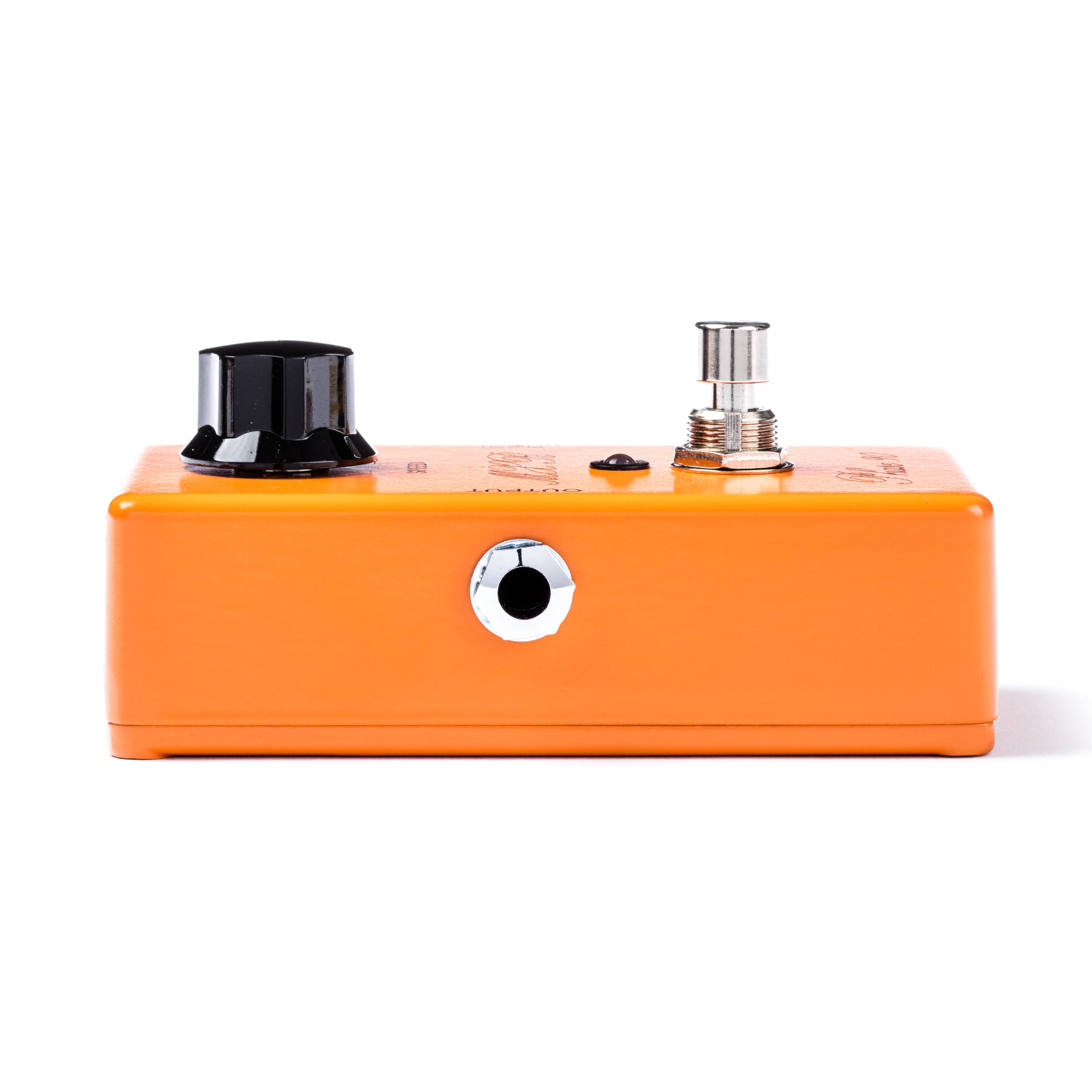

•Connect a cable from your guitar to the input jack of the Script Phase 90, and then connect another cable from the output jack of the Script Phase 90 to your amplifier.

– Set the SPEED knob to the 12 o’clock position.

– Turn on the effect by pressing the footswitch.

– Rotate the SPEED knob clockwise to increase the speed of the phasing effect, or counterclockwise to decrease it.

DESCRIPTION

• Built to original 1974 circuit design

• Features AC power jack and on/off

status LED

• True bypas

POWER

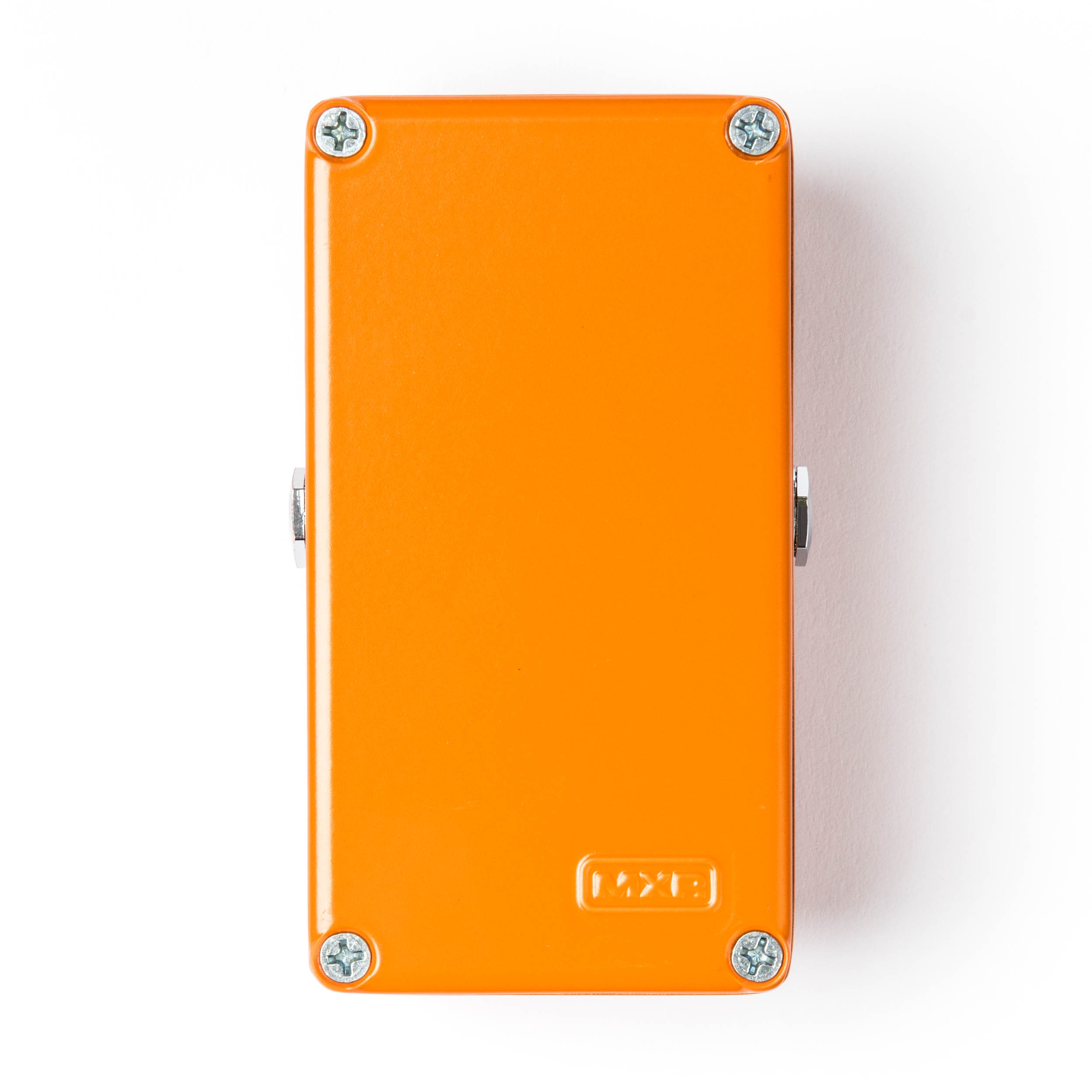

The MXR Script Phase 90 is powered

by one 9-volt battery (remove bottom

plate to install), a 9-volt AC adapter

such as the Dunlop ECB003/ECB003E,

or a DC Brick™ power supply.

CONTROlS

• SPEED knob controls rate of

phase effect

• FOOTSWITCH toggles effect on/bypass

(indicated by red LED

SPECIFICATIONS

Input Impedance

Output Impedance

Max Input Level

Noise Floor*

Current Draw

Bypass

Power Supply

470 kΩ

10 kΩ-5 dBV

> 95 dB

8.2 mA

True Hardwire

9 volts DC
