Description
A Workhorse Poised for Exceptional Future Experiences

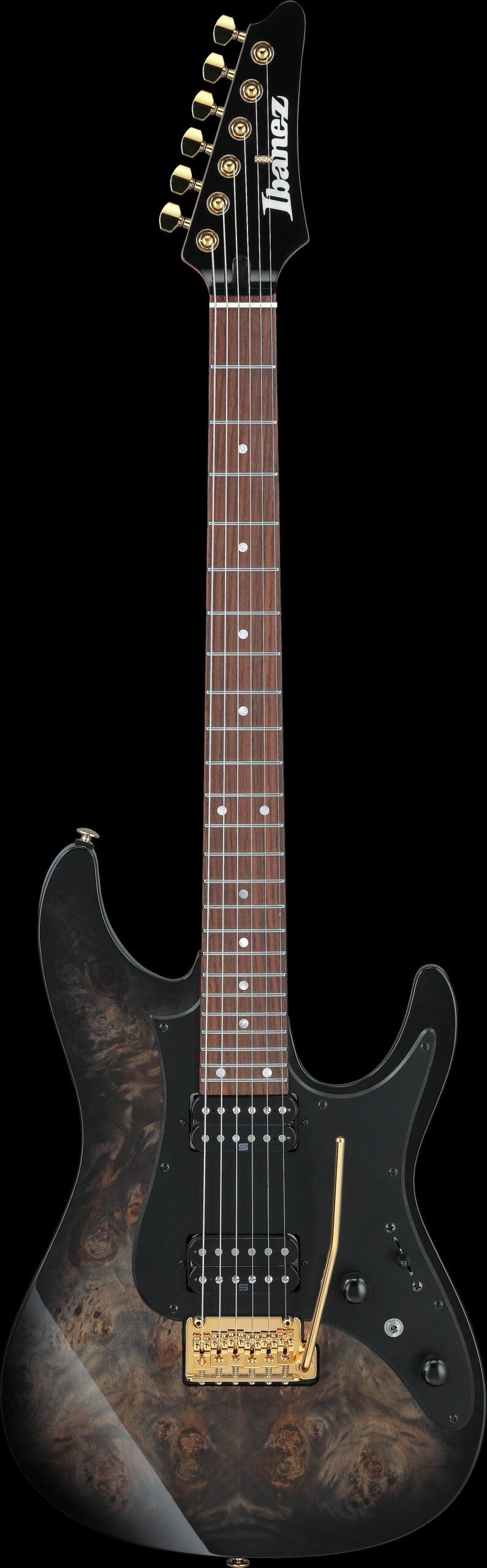

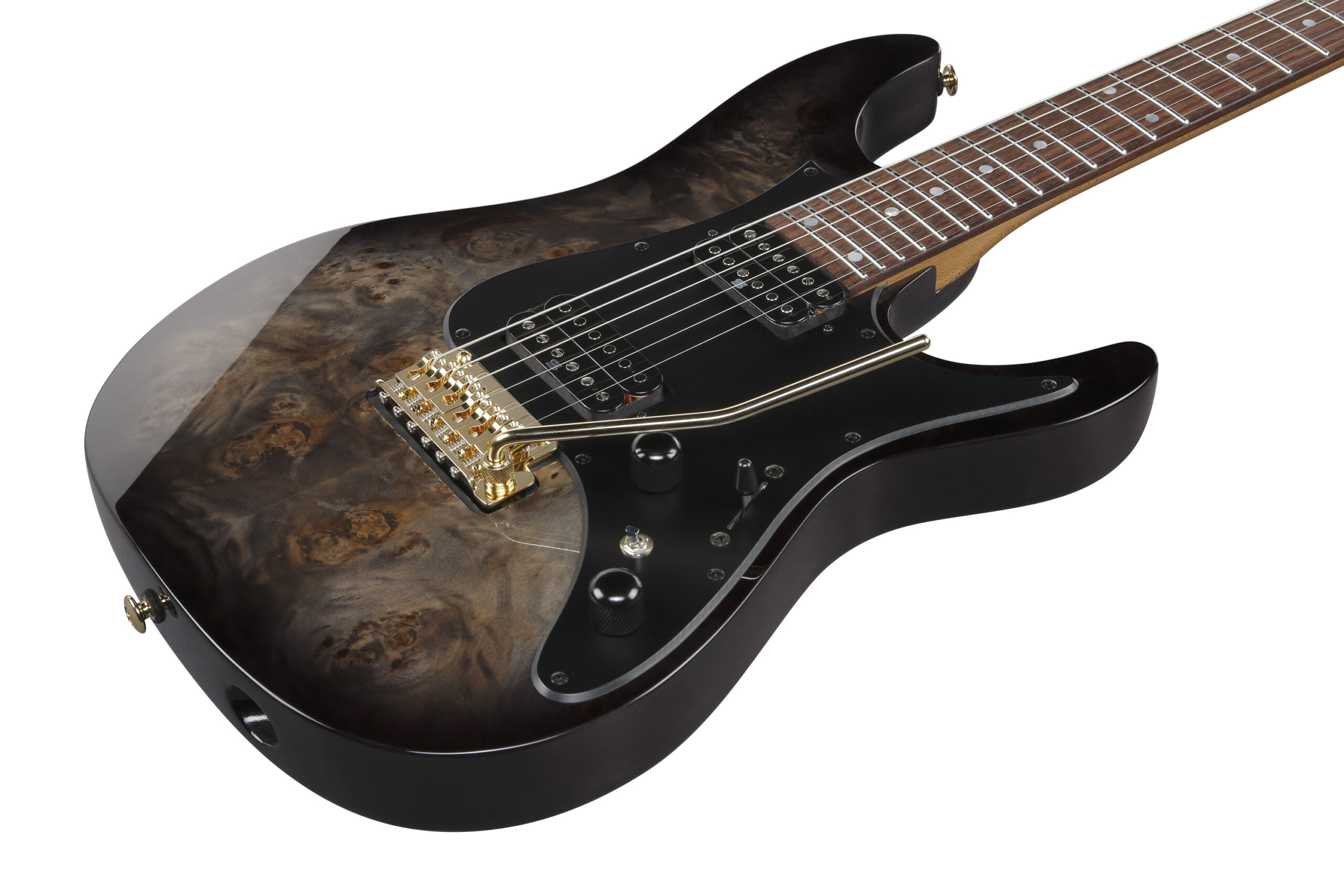

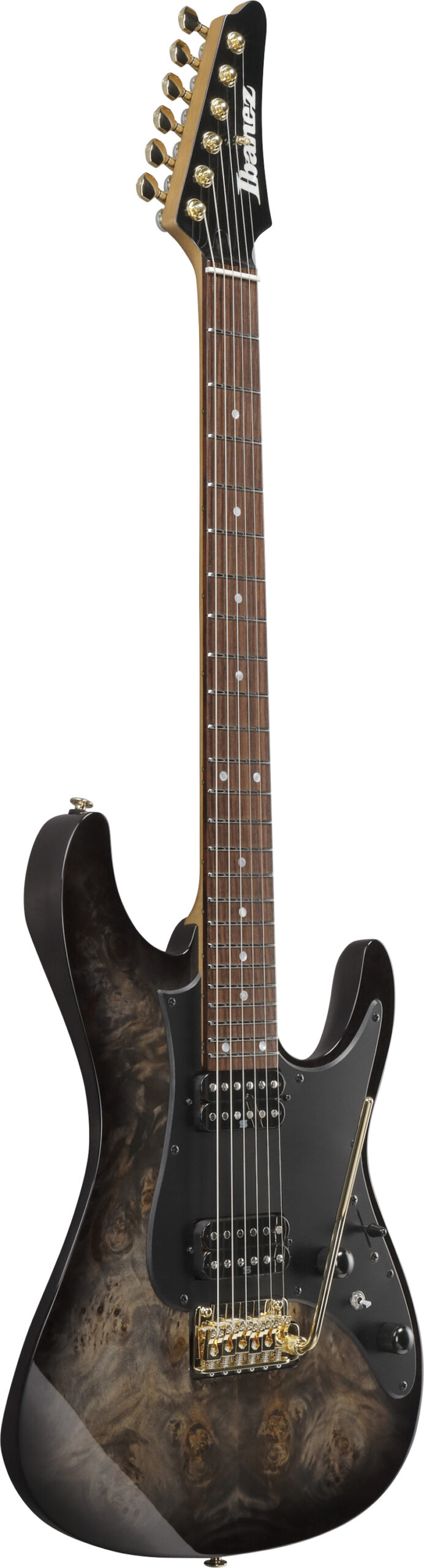

Are you in search of a solid-body electric guitar that seamlessly combines classic aesthetics with exceptional playability and high-quality features? Allow us to introduce you to the Ibanez AZ41P1PB, a stunning representative of Ibanez’s esteemed Premium line. This exquisite instrument boasts a captivating poplar-burl top on a basswood body, paired with a comfortably roasted maple neck and a fast-playing rosewood fingerboard, complete with 24 jumbo stainless steel frets.
Equipped with two uncovered Seymour Duncan Hyperion pickups in an HH configuration, this guitar delivers a delightful vintage vibe while maintaining modern clarity, effortlessly mastering everything from powerful rhythm chords to soulful leads and virtuosic solos. The AZ41P1PB also features a Gotoh T1502 tremolo for remarkable pitch control and resilient Gotoh MG-T tuning machine heads for consistent tuning stability. Impressive in any genre and capable of conquering every musical challenge, the AZ41P1PB is truly a reliable workhorse that could become your new favorite instrument!
SPECS
- neck type
- AZ Oval CRoasted Maple neck
- top/back/body
- Poplar Burl topAmerican Basswood body
- fretboard
- Rosewood fretboardMother of Pearl dot inlay
- fret
- Jumbo Stainless Steel frets
- number of frets
- 24
- bridge
- Gotoh® T1502 bridge
- string space
- 10.5mm
- neck pickup
- Seymour Duncan® Hyperion (H) neck pickupPassive/Alnico
- bridge pickup
- Seymour Duncan® Hyperion™ (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D’Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- nut
- Graph Tech® nut
- hardware color
- Gold
NECK DIMENSIONS
- Scale :
- 648mm/25.5″
- a : Width
- 42mm at NUT
- b : Width
- 57mm at 24F
- c : Thickness
- 20.5mm at 1F
- d : Thickness
- 22.5mm at 12F
- Radius :
- 305mmR

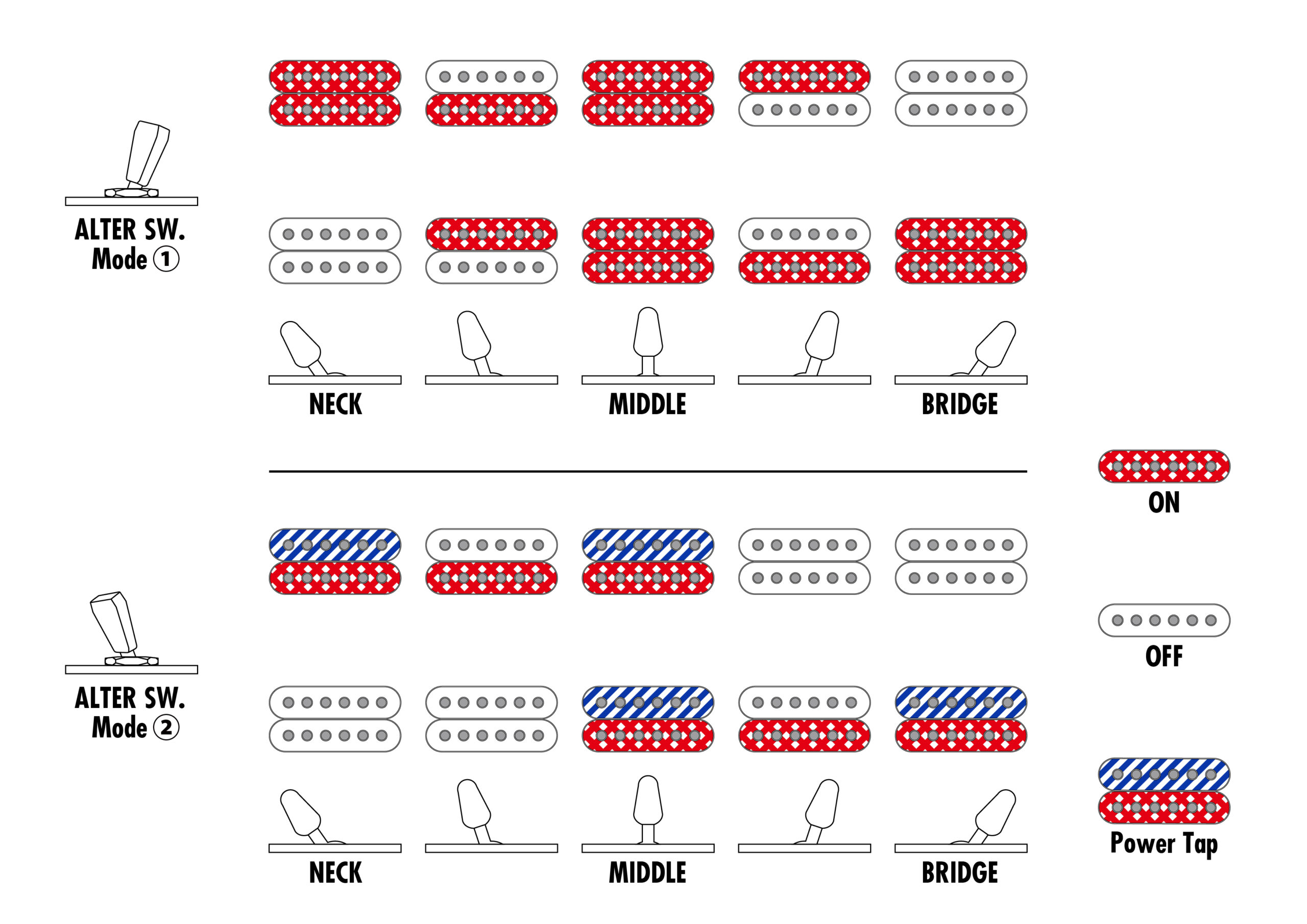

SWITCHING SYSTEM
DESCRIPTION(Collapse)
When the alter switch is in neck position, power tap mode is on. When the alter switch is in bridge position, power tap mode is off. When power tap mode is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected. When power tap mode is on and the pickup selector switch is in neck position, the neck pickup is selected and in power tap mode. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected and are both in power tap mode. When the switch is in between center and bridge position, the bridge side of the bridge pickup is selected. When the switch is in bridge position, bridge pickup is selected and is in power tap mode.

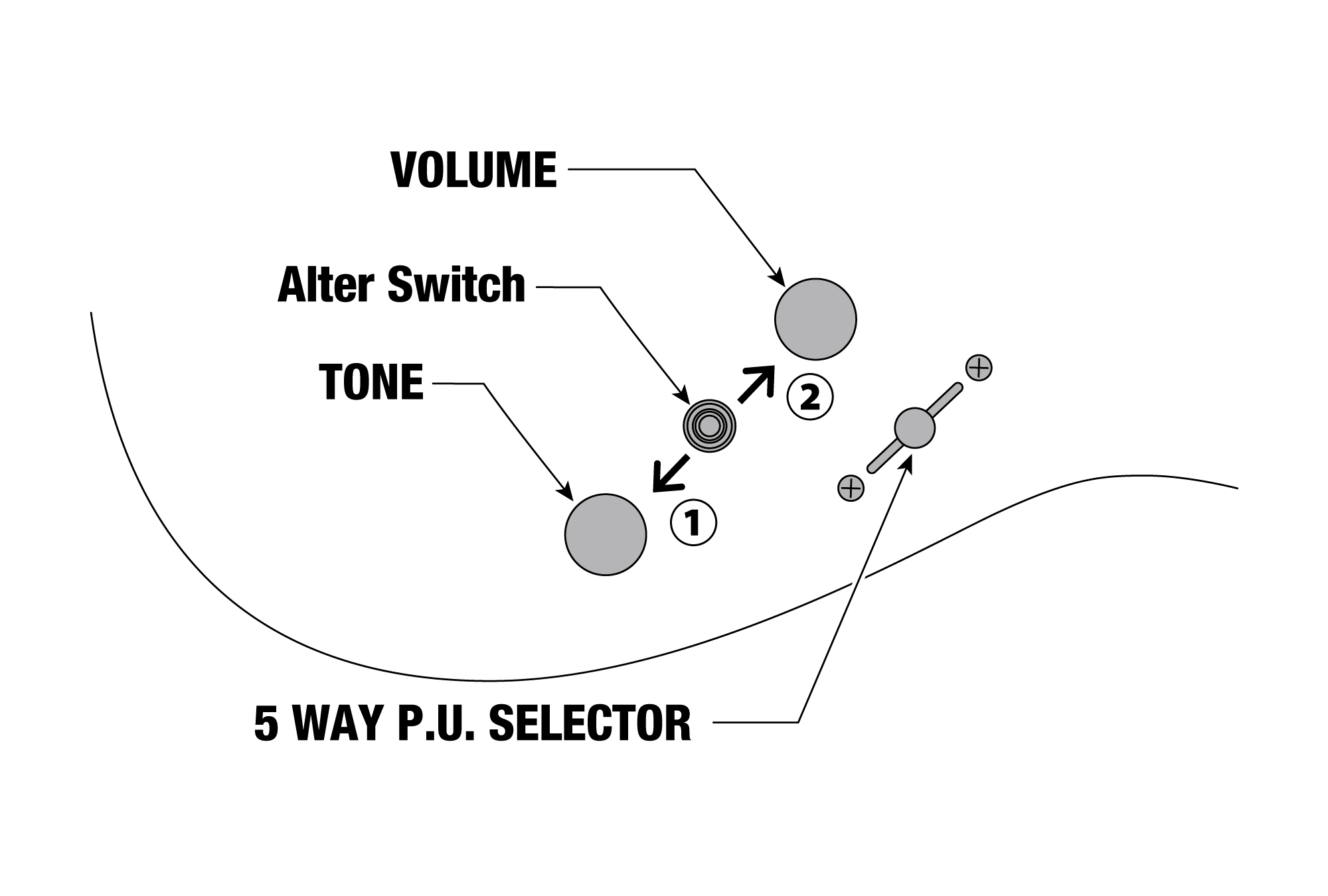

CONTROLS
DESCRIPTION(Collapse)

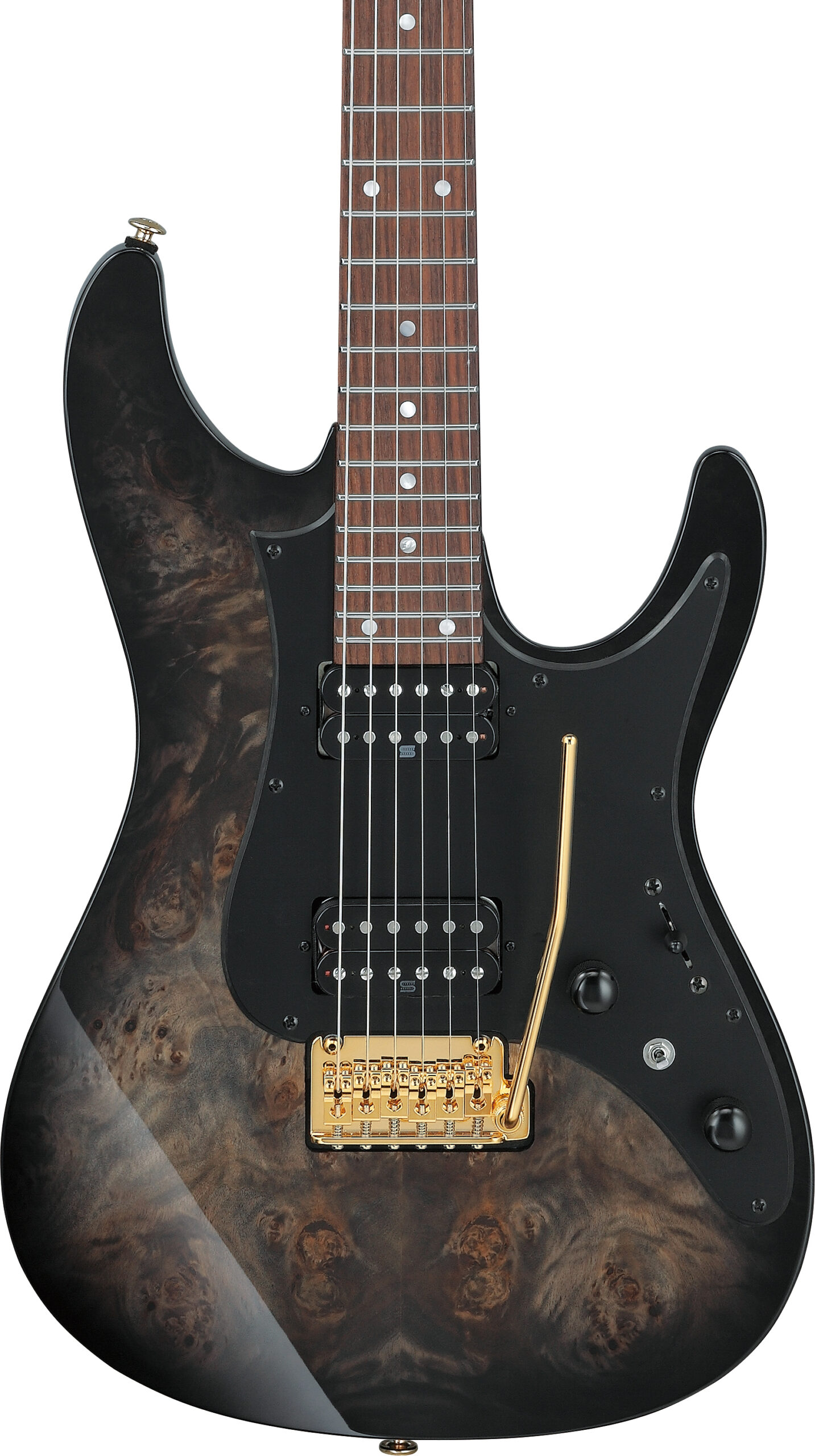

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is the five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is the alter switch.
OTHER FEATURES
-
- Recommended Case MR500C

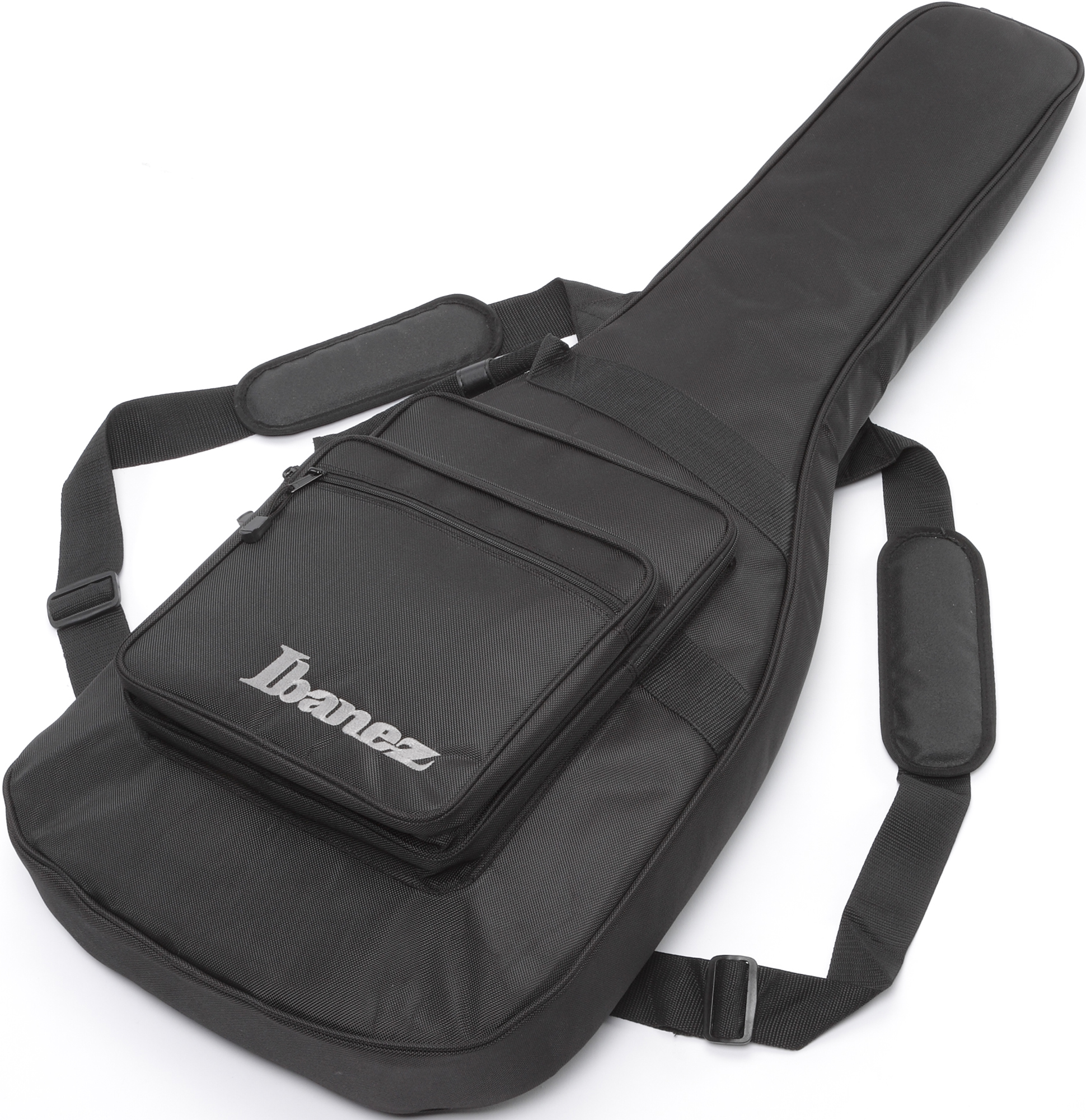

- Gig bag included

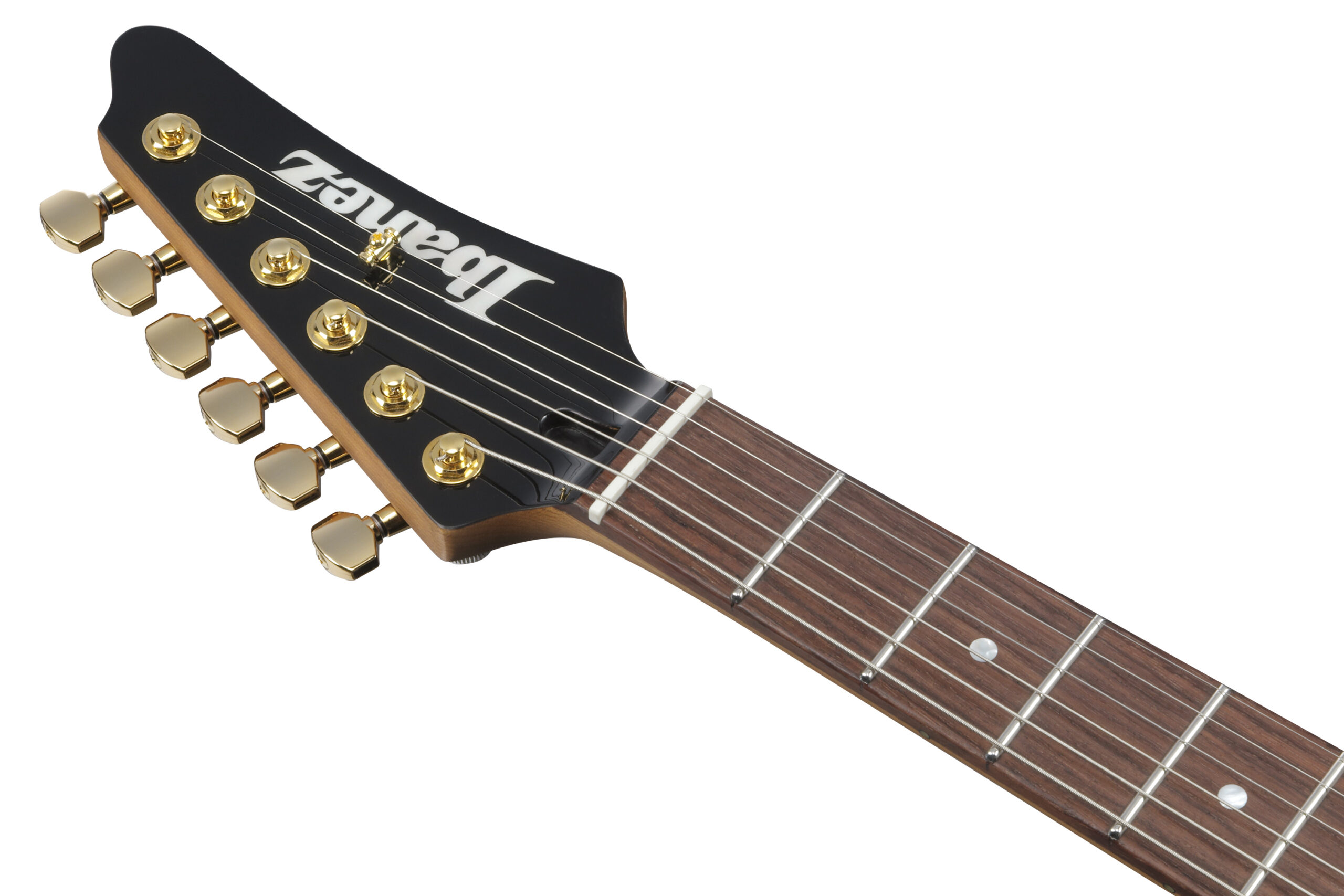

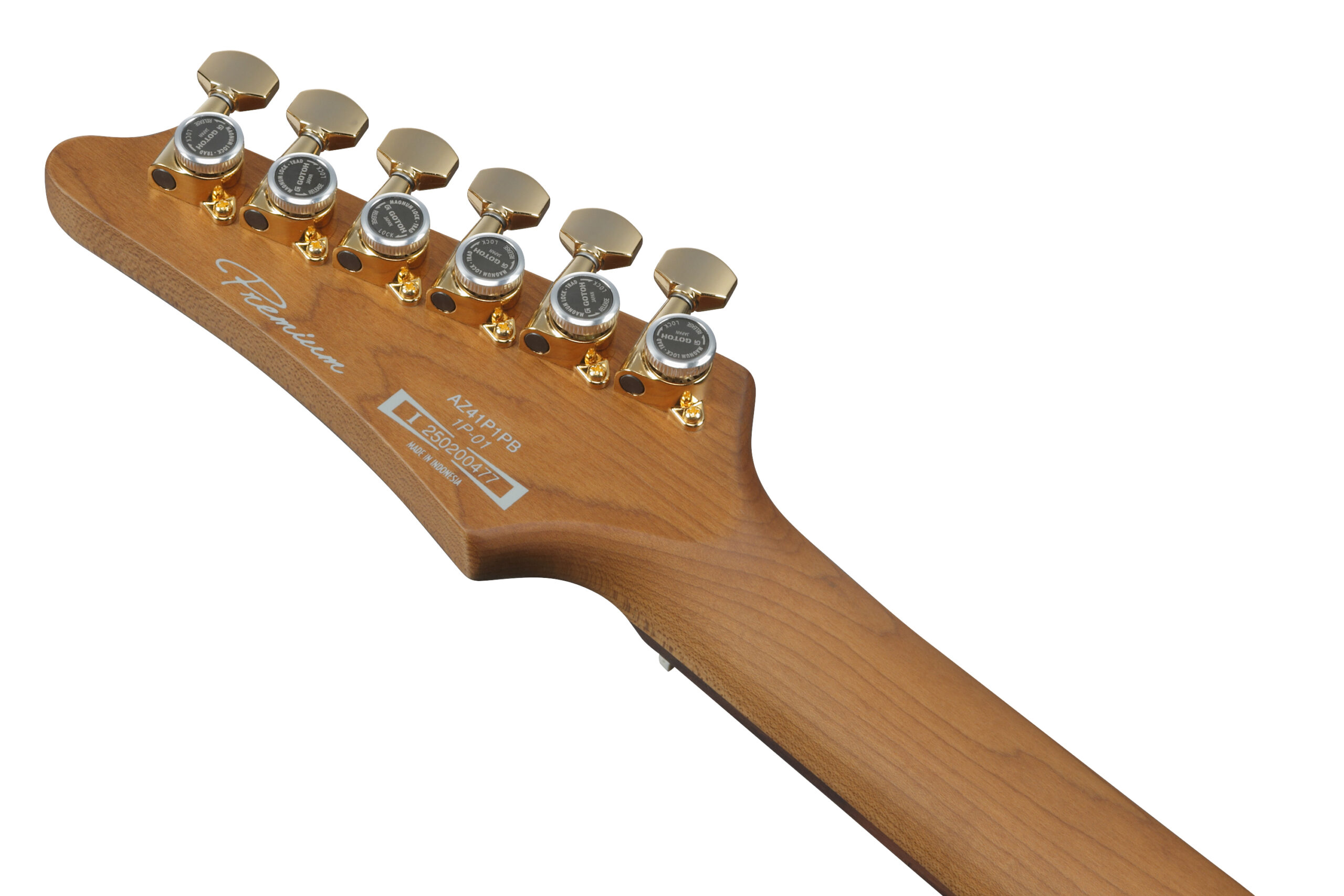

- Gotoh® MG-T locking machine heads
- dyna-MIX10 switching system w/Alter Switch
- Luminescent side dot inlay
